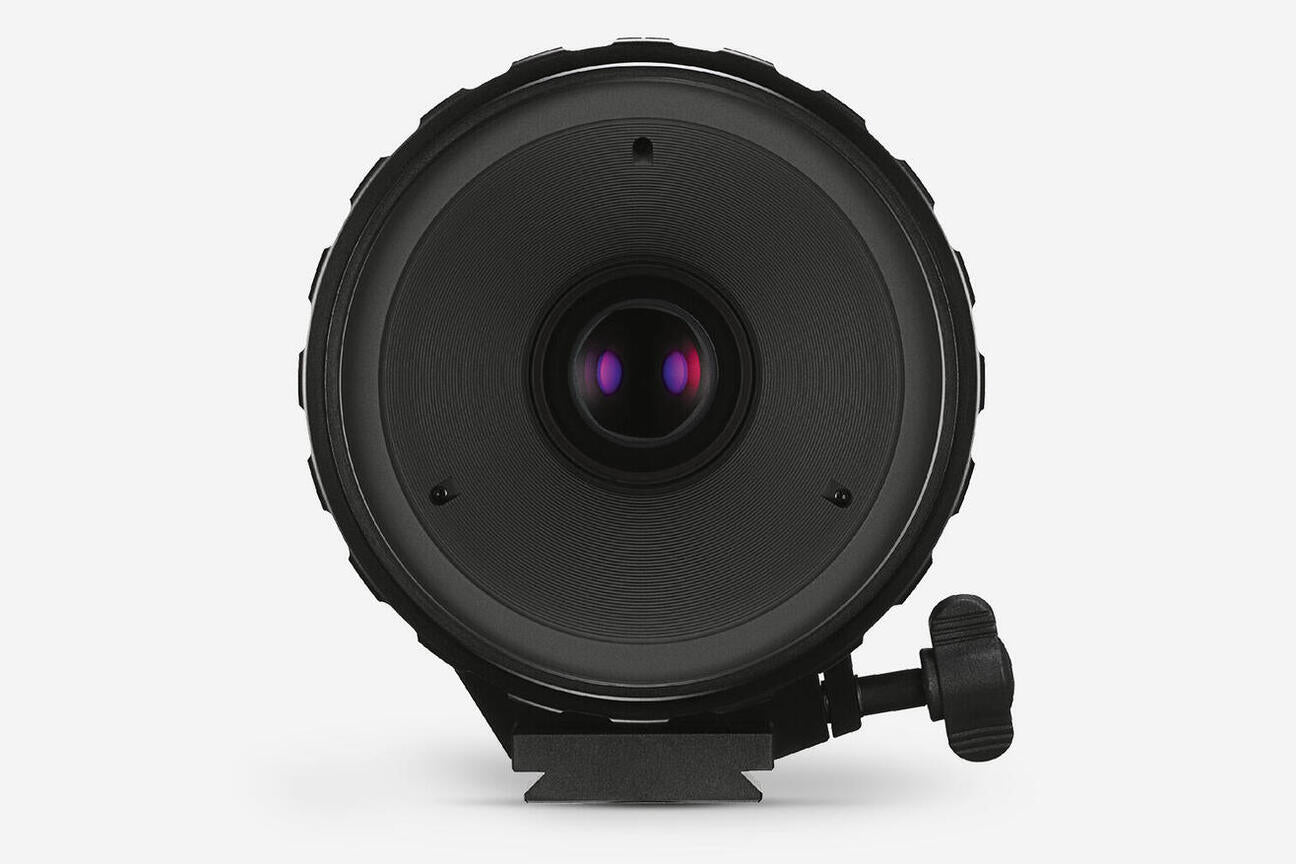

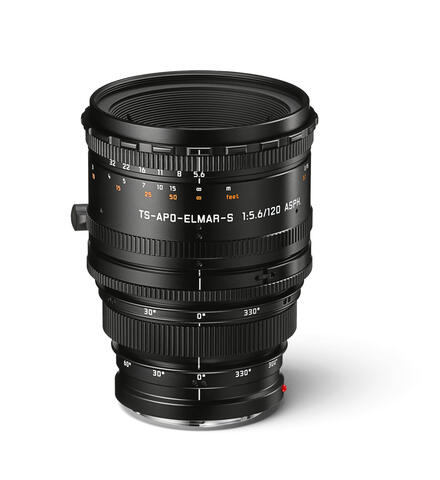

Name: TS-APO-Elmar-S 120 f/5.6 ASPH.
Brand: Leica Official Store India
SKU: 11079
Price: 590000.0 INR
Availability: InStock

Perspective control

In the same way as with a field camera, the adjustments possible with the TS-APO-Elmar-S 120 f/5.6 ASPH. (96 mm in 35 mm format) allow full control over perspectives and the location of the plane of sharpest focus. The lens delivers an image circle with a diameter increased by 24 mm to allow parallel shifts of up to 12 mm in relation to the optical axis in all directions. This effectively relocates the viewing standpoint and correspondingly alters the perspective – this, for example, allows product photography without undesired converging or diverging verticals.

Independent of this shift function, the lens can also be tilted by up to 8° in all directions to tilt the plane of sharpest focus according to the Scheimpflug principle. Using this technique, you can shoot a subject from an oblique angle at maximum definition.

Order no. : 11079

Image angle (diagonal, horizontal, vertical) : 23.6° / 20.0° / 13.6°, corresponds to approx. 96 mm focal length in 35 mm format

Optical design :

Number of lenses / groups : 6/4

Position of entrance pupil (from apex of 1st lens element) : 65.6 mm

Focusing range : 0.95 m to ∞

Distance settings :

Scale : Combined meter/feet graduation

Smallest object field : 159 mm × 239 mm

Largest reproduction ratio : 1 : 5.3

Aperture :

Setting / function : Electronically controlled diaphragm, set using setting / selection dial on camera, including half values

Lowest value : 32

Bayonet : Leica S bayonet

Filter mount : Internal thread for E95 filter, filter mount does not rotate

Dimensions and weight :

Length to bayonet flange : approx. 144 mm

Largest diameter : approx. 108 mm

Weight : approx. 1110 g
